Wohlenberg Golf 6001

This perfect binding line set the precedent for those that followed and included the first drum cover feeder, discovers Nosmot Gbadamosi


Back in 1995, Wohlenberg unveiled its new-generation perfect binding line, the Golf 6001, at Drupa. It boasted a perfect binder, gatherer and inline three-knife trimming. "It was the launch of that range that put us where we are today," says Roger Cartwright, national sales manager for Friedheim International, which recently became the UK distributor for Wohlenberg. "It was also the first machine with a drum cover feeder."

What set the drum feeder apart at the time was that pile or steam cover feeders have problems feeding covers with flaps. "It leads to jams and stoppages," says Cartwright. The Golf feeds the cover upside down and face up, so the flaps were held firmly against the drum.

While the Golf is a manual makeready machine, on every position there is a digital dial. This means the operator doesn't have to use ruler scales, as they did with the other machines on the market at the time. The micrometer dials give a visual readout of each adjustment.

Makeready benefits
"The fact you have those dials makes it really a semi-automatic makeready. Also, it means you can very quickly go back to previous settings," adds Cartwright.

Other features on the machine include glue tanks for spine and side gluing, with built-in pre-melters underneath the tank. On average, the gatherer on the machine usually has around 12-16 stations.

This led to the machine selling in its hundreds worldwide, according to Cartwright, with around 15-20 installations going to the UK. It targeted trade finishers, book binders and printers.

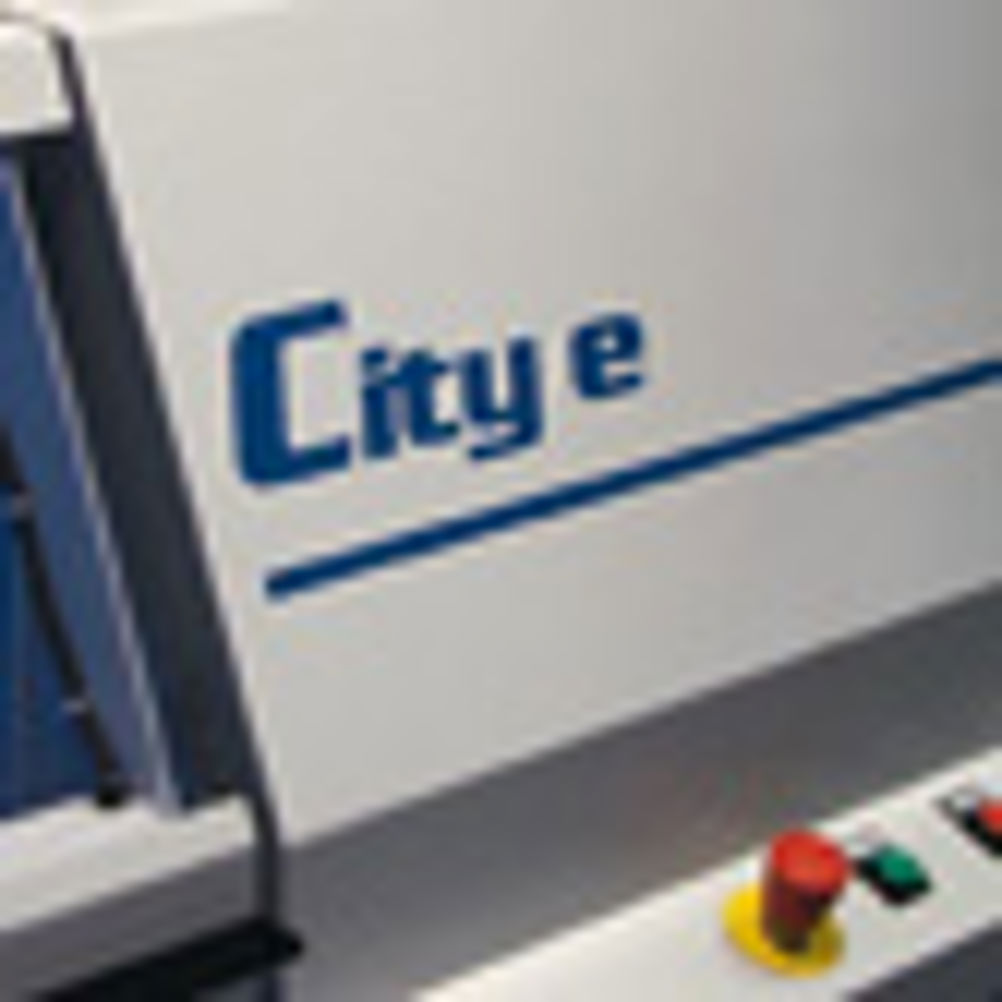

In 2002, Wohlenberg launched the City e. This machine had a fully automatic makeready system compared to the manual makeready on the Golf.  There were minor changes during the Golf's lifetime, but the fully automatic City range proved irresistible for the market. Hence, manufacturing of the Golf stopped in 2003.

However, the Golf range still has a strong secondhand presence in the UK and worldwide. Friedheim International will part-exchange, but usually sells older models to dealers.

Depending on the circumstances, Wohlenberg will occasionally refurbish a used machine in its factory in Germany. Spare parts are still available as many of the components are used through the range and are interchangeable.

Because of the bespoke nature of the machines (due to the configuration, build and type of work), service contracts are tailored to suit the customer.  If you're considering purchasing a Golf, check for wear and tear in the main chain. Also, check if there is still some adjustment left or has it been stretched to the max. A new City e 6000 model costs around £500,000-£750,000, depending on configuration. A 2001 Golf 6001 is priced be­­tween £100,000-£200,000 depending on specification.


SPECIFICATIONS
Speed 6,000cph
Max block size 320x370mm
Max size gatherer 370x260mm
Book thickness 4-40mm
Price
New City e 6000:£500,000-£750,000
Used 2001 Golf 6001: £100,000-£200,000
What to look for
Main chain
Glue tanks
